50kw Off Grid Hybrid Solar Inverter MPPT Power System Home CE

50kw Off Grid Hybrid Solar Inverter MPPT Power System Home CE

50kw Hybrid Solar Inverter

Off Grid Hybrid Solar Inverter

Off Grid Solar Inverter MPPT

Place of Origin:

China

Brand Name:

KVOU

Certification:

CE,UL

Model Number:

GW25K-MT

Contact Us
Request A Quote
Product Details
Maximum Input Voltage (V):
1100
Working Temperature Range (°C):
﹣30 ~ 60
Dimensions (width × Height × Thickness Mm):
480×590×200
Nput Voltage:
90V-280V
Output Voltage:
220V/230V /240V
Output Current::
100A
Output Frequency:
50/60Hz
Output Type:
Single, DUAL, Three Phase
Size:
355/419/158 Mm
Type:
DC/DC Converters, DC/AC Inverters, AC To AC
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden case and Carton case
Delivery Time
7-15working days
Payment Terms
T/T, D/P, D/A
Supply Ability
5000 unit per month
Product Description

Hot Sale 50kw Off Grid Solar Inverter Power System Home MPPT

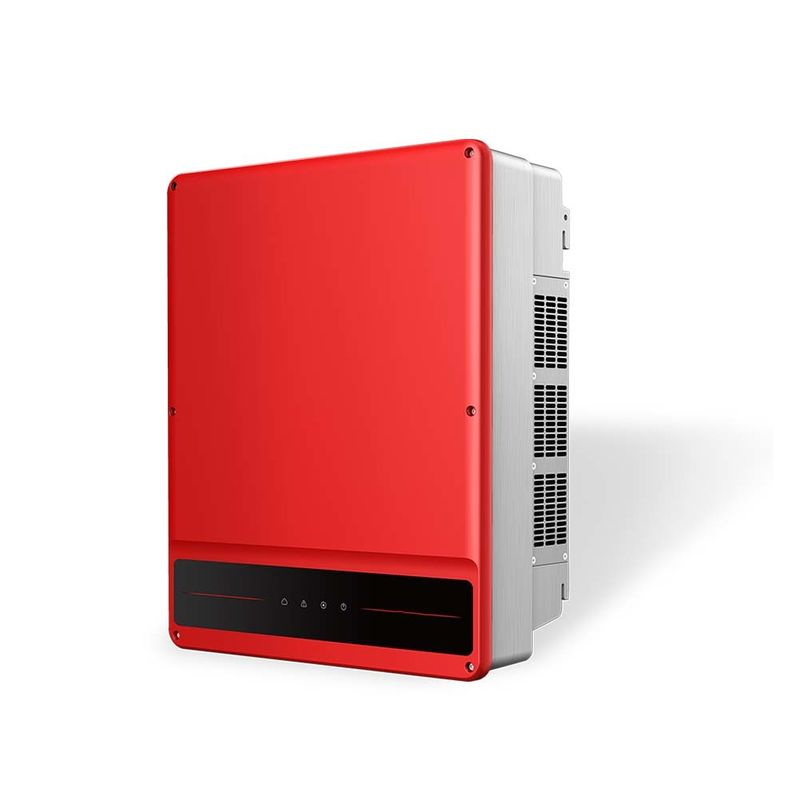

KVOU series three-phase inverters are ideal for commercial rooftop system solutions. The SMT series achieves the highest efficiency of 98.8% and features unique design highlights including solid capacitors, no fuse design and optional Arc Fault Circuit Interrupter (AFCI) functionality. These new features ensure a longer lifetime and a higher level of operational safety, improving the user experience. The SMT series has a compact design and weighs only 40 kg, making installation easier.
The maximum DC input voltage of SMT series is 1100V, wider MPPT range for complex roofs, and 180V start-up voltage, ensuring earlier power generation and longer working hours, maximizing long-term returns and profitability. Operating conditions.







KVOU 50-60kW series inverters are ideal for medium and large commercial installations.
Harvest solar energy and generate environmentally friendly electricity to enhance the return on investment from the high yield of commercial photovoltaic systems. Its unique no-fuse design makes maintenance exceptionally easy for the operator, saving time and money.
The excellent safety design provides reliable protection for outdoor installation, ensuring stable use and power generation even under extreme conditions. The SMT 50-60kW range is a groundbreaking inverter that meets your business and value needs.





Model No.
GW25K-MT
GW29.9K-MT
GW30K-MT
GW36K-MT
Input Data(DC)

Max. DC Voltage
1100 V
1100 V
1100 V
1100 V
Nominal DC Voltage
600 V
600 V
600 V
600 V
Min. DC Voltage to Start Feed In
180 V
180 V
180 V
180 V
Max. DC Current
75 A
112.5 A
112.5 A
112.5 A
MPP(T) Voltage Range
200~950 V
200~950 V
200~950 V
200~950 V
No of MPP Trackers
3
3
3
3
DC Inputs
6
6
6
6
Connectors
MC4
MC4
MC4
MC4
Output Data (AC)

Nominal AC Power
25 kW
29.9 kW
33 kW
36 kW
Nominal AC Voltage
400 V
400 V
400 V
400 V
Max. AC Current
40 A
43.3 A
48 A
53.3 A
Frequency
50, 60 Hz
50, 60 Hz
50, 60 Hz
50, 60 Hz
Power Factor (cosθ)
1
1
1
1
Distortion (THD)
< 3 %
< 3 %
< 3 %
< 3 %
No of feed-in phases
3
3
3
3
Max. Efficiency
98.70%
98.80%
98.80%
98.80%
Euro Efficiency
98.40%
98.50%
98.50%
98.50%
General Data

Dimensions (H/W/D)
590x480x200 mm
590x480x200 mm
590x480x200 mm
590x480x200 mm
Weight
40 kg
40 kg
40 kg
40 kg
Power Consumption at Night
< 1 W
< 1 W
< 1 W
< 1 W
Operating Temperature
-30 ~ +60 ℃
Transformer
Transformerless
Protection Class
IP65
Humidity
0-100 %
Cooling
Fan
Max. Altitude
3000 m
Interface
RS 485, WLAN
Display
LCD, LED
Protection Features

Protection Features
Anti Island Protection(ENS), Overvoltage Protection, Overcurrent Protection, Residual Current Device (RCD), Reverse Polarity
Protection, Surge Protection
Model No.
GW50KS-MT
GW60KS-MT
Input Data(DC)

Max. DC Voltage
1100 V
1100 V
Nominal DC Voltage
600 V
600 V
Min. DC Voltage to Start Feed In
180 V
180 V
Max. DC Current
187.5 A
225 A
MPP(T) Voltage Range
200~950 V
200~950 V
No of MPP Trackers
5
5
DC Inputs
10
12
Connectors
MC4
MC4
Output Data (AC)

Max. AC Power
55 kW
66 kW
Nominal AC Power
50 kW
60 kW
Nominal AC Voltage
400 V
400 V
Frequency
50, 60 Hz
50, 60 Hz
Power Factor (cosθ)
1
1
Distortion (THD)
< 3 %
< 3 %
No of feed-in phases
3
3
Max. Efficiency
98.60%
98.60%
Euro Efficiency
98.10%
98.10%
General Data

Dimensions (H/W/D)
660x520x220 mm
660x520x220 mm
Weight
55 kg
55 kg
Power Consumption at Night
< 1 W
< 1 W
Noise Level
< 65 dB(A)
< 65 dB(A)
Operating Temperature
-30 ~ +60 ℃
Protection Class
IP65
Humidity
0-100 %
Cooling
Fan
Max. Altitude
3000 m
Interface
RS 485, WLAN
Display
LCD, LED
Protection Features

Protection Features
Anti Island Protection(ENS), Short Circuit Protection, Overvoltage Protection, Overcurrent Protection, Reverse Polarity
Protection, Surge Protection
