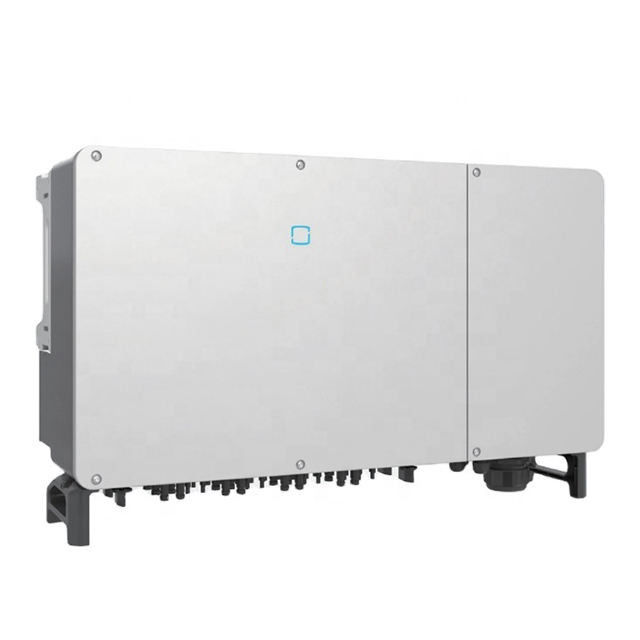

225KW High Power Hybrid Solar Inverter Photovoltaic Grid Connected Inverter

225KW High Power Hybrid Solar Inverter Photovoltaic Grid Connected Inverter

225KW Hybrid Solar Inverter

Hybrid Solar Inverter Photovoltaic

225KW High Power Solar Inverter

Place of Origin:

China

Brand Name:

KVOU

Certification:

CE,UL

Model Number:

SG225CX

Contact Us
Request A Quote
Product Details
Output Voltage:
1080V
Output Frequency:
50/60Hz
Size:
1051*660*363 Mm
Inverter Efficienc:
99.01%
Warranty:
5 Years
Max AC Output Current::
178.7A
Max PV Input Voltage:
1500V
Input Voltage:
500V / 500V
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden case and Carton case
Delivery Time
7-15working days
Payment Terms
T/T, D/P, D/A
Supply Ability
5000 unit per month
Product Description

High power 225KW solar photovoltaic grid-connected inverter for solar system



Built-in traffic monitoring is equipped with relevant monitoring modules for different markets
Intelligent monitoring: Solman not only provides high-standard quality products and cost-effective solar inverters, but also provides intelligent WIFI equipment and a 24-hour online monitoring platform.



Product advantages
Adaptive to the complex power grid to extend the grid-connected power generation time Touch and turn on the mobile phone to understand the output power information



225KW High Power Hybrid Solar Inverter Photovoltaic Grid Connected Inverter 0



Type designation
Input (DC)

Max. PV input voltage
1500V
Min. PV input voltage / Start-up input voltage
500V / 500V
Rated input voltage
1080V
MPP voltage range
500V~1500V
No. of independent MPP inputs
12
No. of PV strings per MPPT
2
Max. PV input current
360A(12×30A)
Max. DC short-circuit current
600A(12×50A)
Output (AC)
Rated AC power (@230V,50Hz)
225kW
Max. AC output power
247.5kW
Rated AC output apparent power
247.5kVA
Max. AC output current
178.7A
Rated AC voltage
3 / PE,800V
AC voltage range
640~920V
Rated grid frequency / Grid frequency range
50Hz/45-55Hz
60Hz/55-65Hz
Harmonic(THD)
<3 %(at rated power)
Power factor at nominal power /Adjustable power factor
>0.99/0.8 leading-0.8 lagging
Feed-in phases / Connection phases
3/3-PE
Efficiency
Max. efficiency
99.01%
European efficiency
98.52%
Protection&Function
Grid monitoring
Yes
DC reverse connection protection
Yes
AC short-circuit protection
Yes
Leakage current protection
Yes
Surge Protection
DC Type Ⅱ/AC Type Ⅱ
DC switch
Yes
Arc fault circuit interrupter (AFCI)
Yes
PID recovery function
Yes
General Data
Dimensions (W*H*D)
1051×660×363mm
Mounting method
Wall-mounting bracket
Weight
99kg
Topology
Transformerless
Degree of protection
IP66
Operating ambient temperature range
-30 ℃ to 60 ℃
Allowable relative humidity range (non-condensing)
0% - 100%
Cooling method
Smart forced air cooling
Max. operating altitude
5000 m (> 4000 m derating)
Display
LED,Bluetooth+APP
Communication
RS485/PLC(Optional)
DC connection type
MC4
AC connection type
OTor DT terminal (Max.300 mm2)
Compliance
IEC62109-1,IEC62109-2,IEC61727,IEC62116,GB / T19964,NB / T32004-2018,CGC / GF 035-2013,CNCA / CTS0002-2014,Q / GDW 1617-2015,GB /
T 32826-2016, GB / T 32892-2016, GB / T 37408
Country of manufacture
China

225KW High Power Hybrid Solar Inverter Photovoltaic Grid Connected Inverter 1







FQA:



1.What does a solar inverter do?
What is an inverter? Inverters are one of the most important devices in a solar system. It is a device that converts direct current (DC) generated by solar panels into alternating current (AC) used by the grid.



2.How long is the lifespan of a solar inverter?
Solar inverters on panels typically last 10-12 years and usually need to be replaced at least once during the life of the panel. Inverters are critical to the safe and efficient operation of solar panels.



3.Can solar panels work without an inverter?
You may be wondering, "Can a solar panel work without an inverter?" Yes. While most household appliances run on AC power, there are some that can run on DC power, such as your cell phone and laptop. If most of your equipment runs on DC power, then you don't need an inverter.



4.What can't an inverter do?
Remember that exposure to aggressive chemicals, moisture and excessive heat can affect the lifespan of your inverter. In the short term, efficiency can be reduced by overheating if the surrounding air is not circulated properly.
