Place of Origin:
China
Brand Name:
KVOU
Certification:
CE,UL
Model Number:
XG 100-136KW

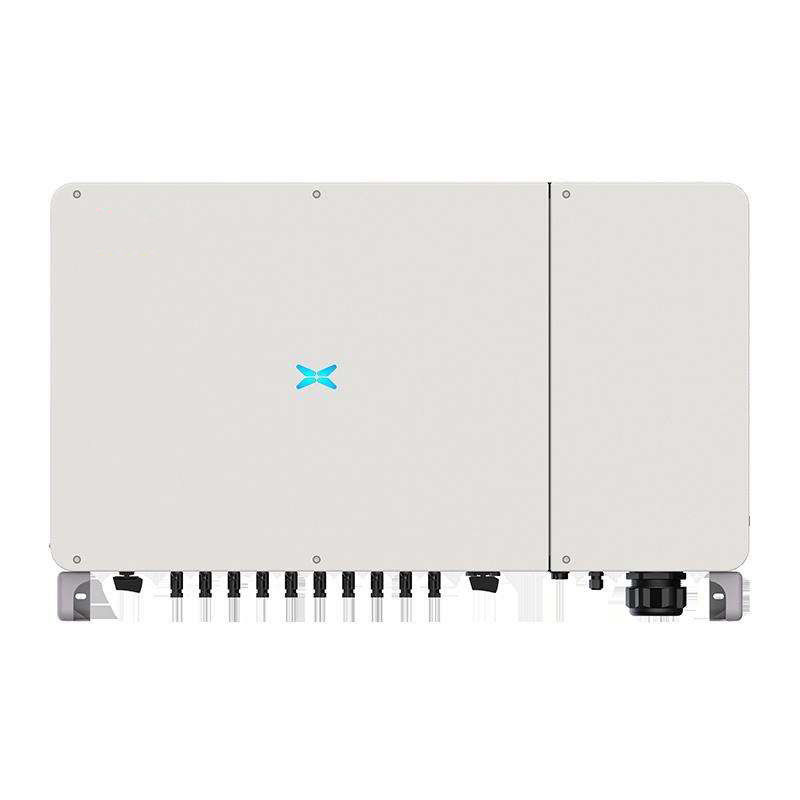

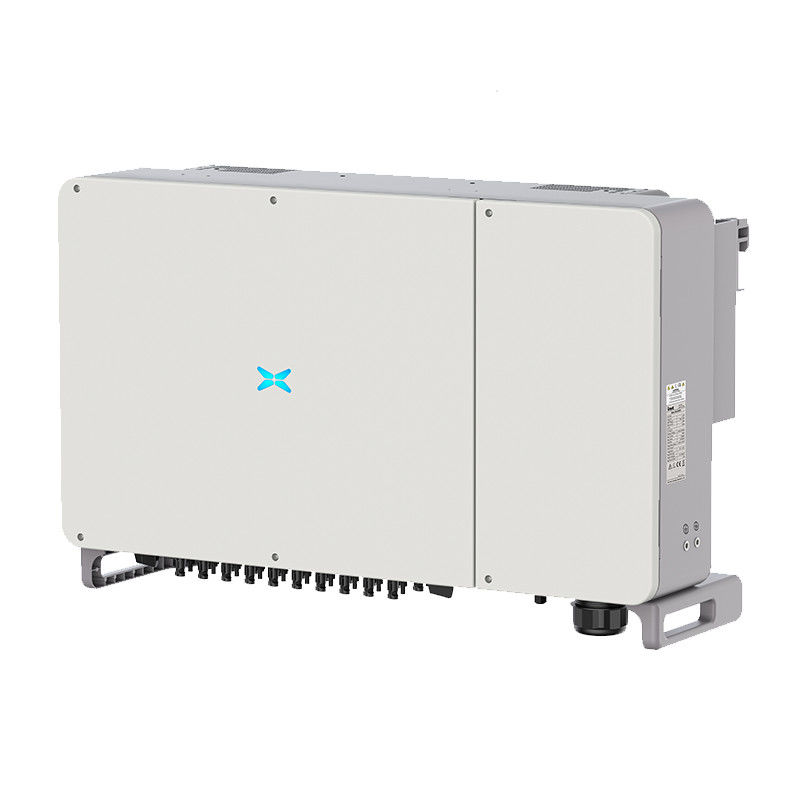

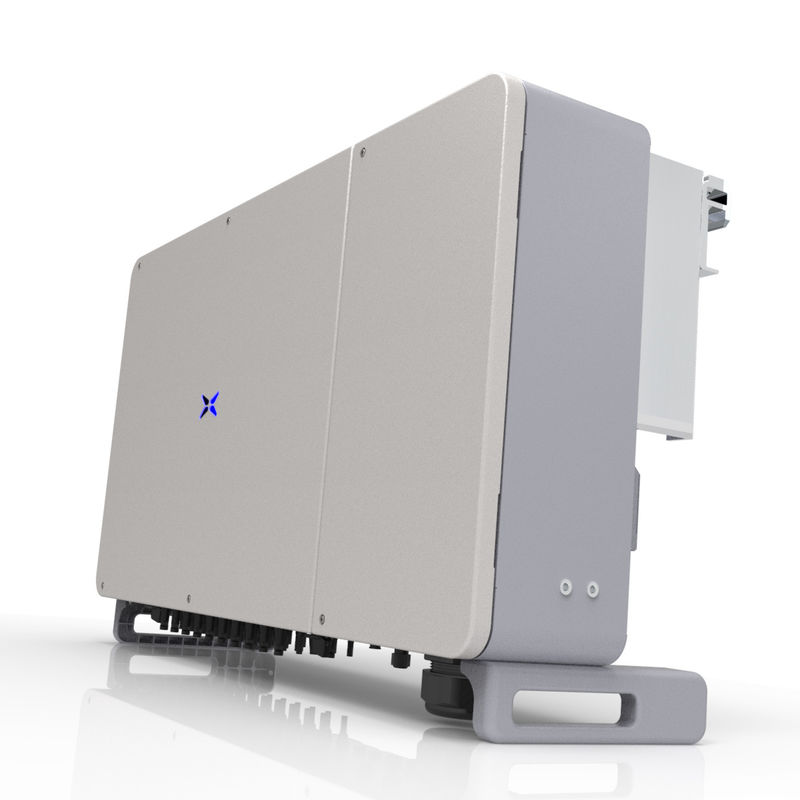

High Power 100KW 110KW 136KW Solar Photovoltaic Grid-Connected Inverter
Efficient
Support capacity ratio. 1.6 times DC super-matching*high energy continuous output, 1.1 times AC overload*4 MPPT independent tracking, MPPT efficiency 99.90%%
* Ultra-low starting voltage minimum 160V
intelligent
* Intelligent monitoring: a one-stop intelligent operation and maintenance platform specially designed for users
Provide comprehensive and intuitive power station data monitoring * Support RS485/USB/WiFi/GPRS/4G
reliable
* IP66 high protection level * AC/DC secondary lightning protection, input overvoltage protection, AC short circuit
Protection, temperature protection and other multiple protection functions, safe and worry-free.
flexible
* Built-in intelligent IV curve scanning function: can accurately locate a single abnormal string, efficient and fast
Operation and maintenance * 4-way MPPT configuration: more flexible string configuration, more options for on-site installation
*Remote maintenance: support online remote upgrade, more convenient maintenance
* Fan drawer design, quick replacement 1
minute
FQA:
1.What is the function of grid-connected inverter?
A photovoltaic grid-connected inverter is a device that converts direct current into alternating current. The converted electricity can be used in household appliances or injected into the grid. You can use a grid-tie inverter between your local generator and the grid.
2.What kind of inverter is used in grid-connected photovoltaic system?
In grid-connected photovoltaic systems, inverters are divided into three basic types: centralized, string and micro inverters. Centralized inverters are the largest and are really used in utility-scale photovoltaic power plants. The capacity of these inverters can exceed 1 MWAC, thus combining the output of thousands of photovoltaic modules.
3.Are grid-connected inverters really useful?
As of July 2009, most grid-connected inverters on the market have peak efficiencies in excess of 94%, with some reaching as high as 96%. Most of the energy lost during inversion is converted into heat.
4.Can I use a battery with a grid-tie inverter?
Grid-tie inverters are designed to convert DC power from solar panels, but they are not designed to be integrated with battery packs. You usually need to add new components to make the inverter work with the battery. It's not cheap either. Batteries are the most expensive part of a solar system.
