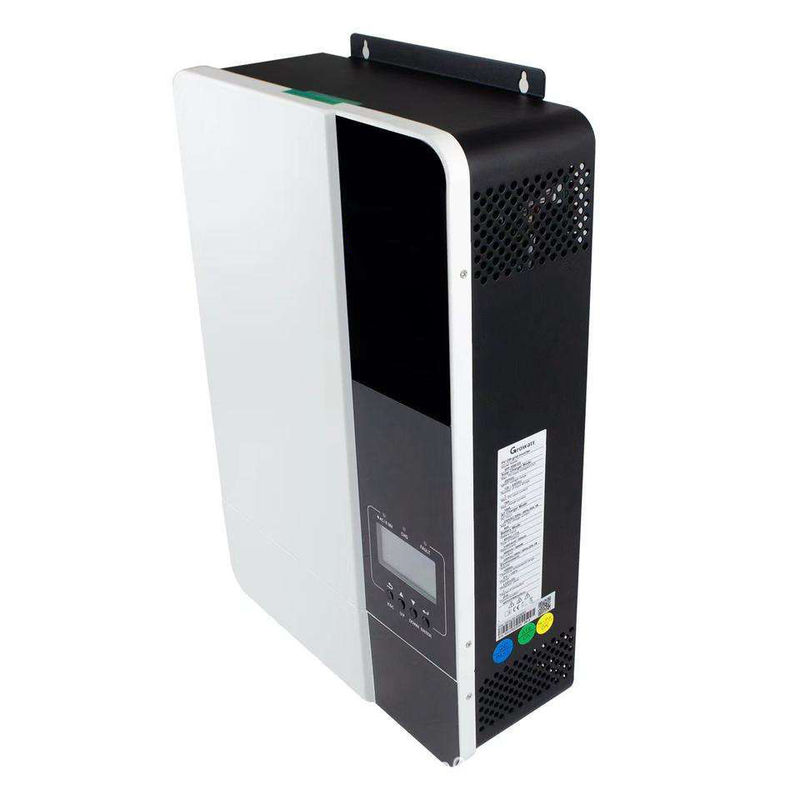

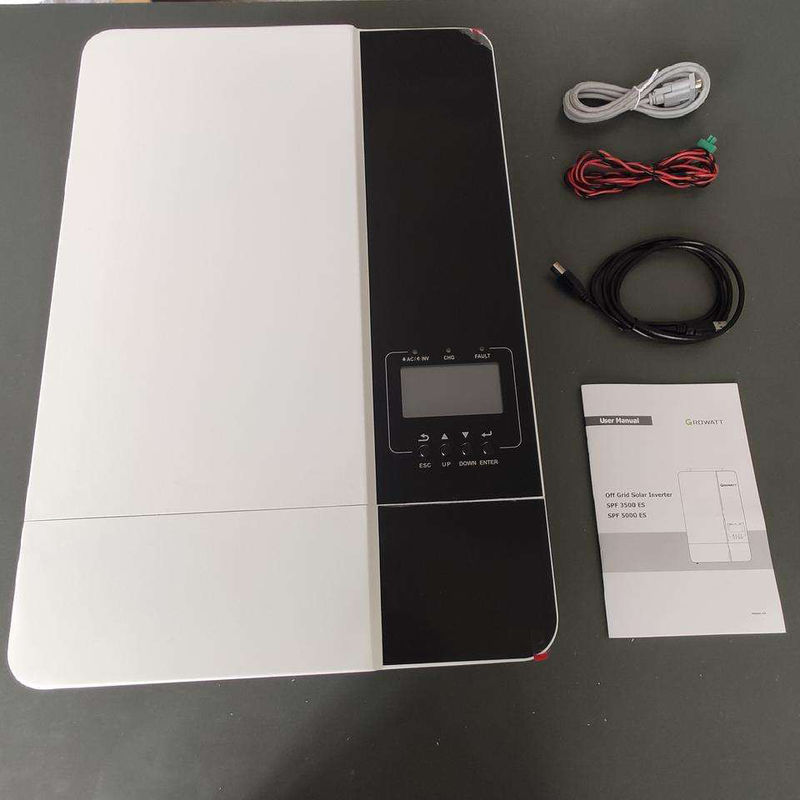

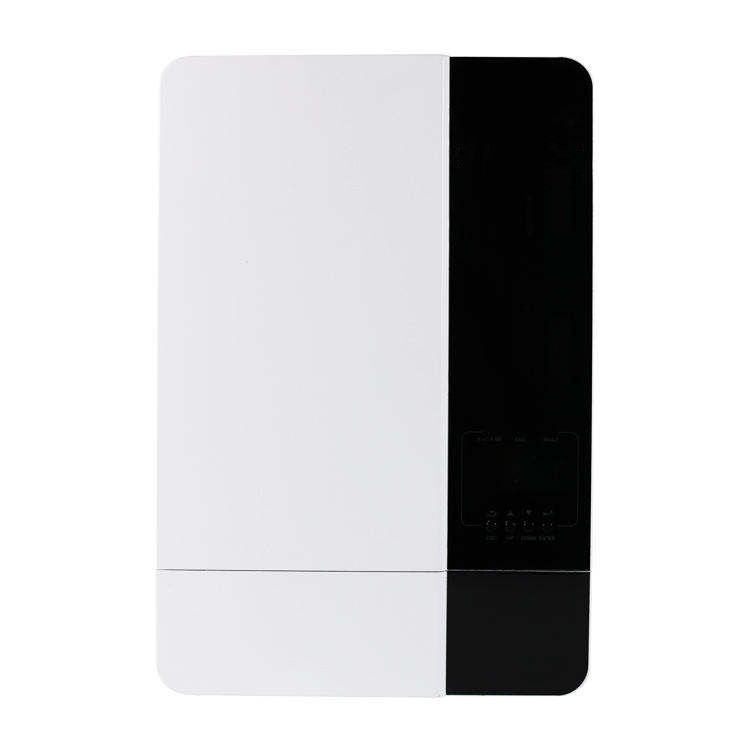

230V Off Grid Hybrid Inverter 3500W 5000W MPPT Pure Sine Wave Solar Inverter

230V Off Grid Hybrid Inverter 3500W 5000W MPPT Pure Sine Wave Solar Inverter

230V Off Grid Hybrid Inverter

Off Grid Hybrid Inverter 3500W

MPPT Pure Sine Wave Solar Inverter

Place of Origin:

China

Brand Name:

KVOU

Certification:

CE,UL

Model Number:

SPF5000ES

Contact Us
Request A Quote
Product Details
Output Frequency:
50Hz,60Hz
Size:
330/485/135mm
Inverter Efficiency:
93%
Battery Voltage:
48VDC
Parallel Capability:
6 Units Maximum
AC Input Voltage:
230V
Output Current:
80A
Type:
AC To AC
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden case and Carton case
Delivery Time
7-15working days
Payment Terms
T/T, D/P, D/A
Supply Ability
5000 unit per month
Product Description

Inverter 48V 3500W 5000W 230V Off Grid Solar MPPT Pure Sine Wave Inverter



Energy storage is the capture of energy produced once for later use to reduce the imbalance between energy demand and energy production. Devices that store energy are often called accumulators or batteries. Energy comes in many forms, including radiation, chemical, gravitational potential energy, electrical potential, electrical energy, high temperature, latent heat, and kinetic energy. Energy storage involves converting energy from a difficult-to-storage form to a more convenient or economical storable form.



> Photovoltaic energy storage system
Integrated photovoltaic and storage systems madel support various types of batteries. And integrate EMS intelligent energy management system
>Safe and reliable
IP54 protection level, all-aluminum design, built-in lightning protection, high-precision leakage protection
>Smart switching
Modular design, support multi-channel parallel connection, expandable power and capacity
> Smart and Simple
Ultra-quiet and flexible communication, support remote/local USB upgrade
>Wide voltage input range
Wide photovoltaic voltage input range 180V-1000V. Wide battery voltage range 220V-800V
>Efficient power generation
High current instantaneous charge and discharge switching, improve power generation efficiency
Specification





Datasheet
Growatt SPF 3500 ES
Growatt SPF 5000ES
Battery Voltage
48VDC
Battery
Lithium/Lead-acid
Inverter Output
Rated Power
3500VA/ 3500W
5000VA/ 5000W
Parallel Capability
Yes, 6 units maximum
AC Voltage
230VAC ± 5% @ 50/60Hz
Surge Power
7000VA
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave hybrid solar inverter
Transfer Time
10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power
4500W
6000W
MPPT Range
120VDC ~ 430VDC
MPP Trackers
1/1
Max PV Array Open V
450VDC
Max Solar Charge Current
80A
100A
AC CHARGER
Charge Current
60A
80A
AC Input Voltage
230 VAC
Frequency Range
50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree
IP20
Dimension(W/H/D)
330/485/135mm
Net Weight
11.5kg
12kg
OPERATING ENVIRONMENT
Humidity
59 to 95% Relative Humidity (Non-condensing)
Altitude
<2000m
operating Temperature
0℃-55℃
Storage Temperature
-15℃-60℃





230V Off Grid Hybrid Inverter 3500W 5000W MPPT Pure Sine Wave Solar Inverter 0







FQA:



1.Does the inverter consume a lot of power?
Inverters use a small amount of energy in the conversion process. The difference between input power and output power is expressed as a percentage. Modern inverters are more than 92% efficient.



2.What are the benefits of an inverter?
Here are a few benefits of variable frequency AC:
save energy. Inverter air conditioners are designed to ensure lower power consumption than ordinary air conditioners. ...
Quiet operation. ...
High cost performance. ...
Provide better cooling effect. ...
Let the individual have a good night's sleep.



3.Are home inverters worth buying?
Buying an inverter can help you overcome every power outage you encounter. Whether you need a home inverter or an office inverter, you can choose from many different makes and models depending on your budget.



4.How long can a home inverter last?
They usually last 3-4 years. However, they require regular maintenance - electrolyte levels must be checked and replenished regularly. They also release harmful gases during charging and discharging. Therefore, they must be installed in a well-ventilated area of the house.
