Place of Origin:
China
Brand Name:
KVOU
Certification:
CE,UL
Model Number:
VENUS-BAT-10

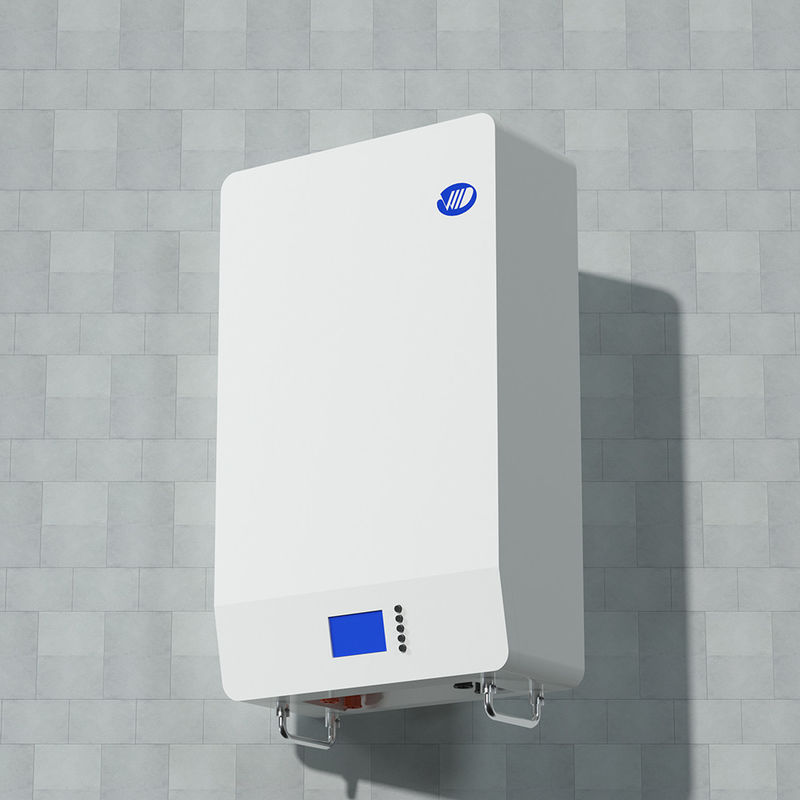

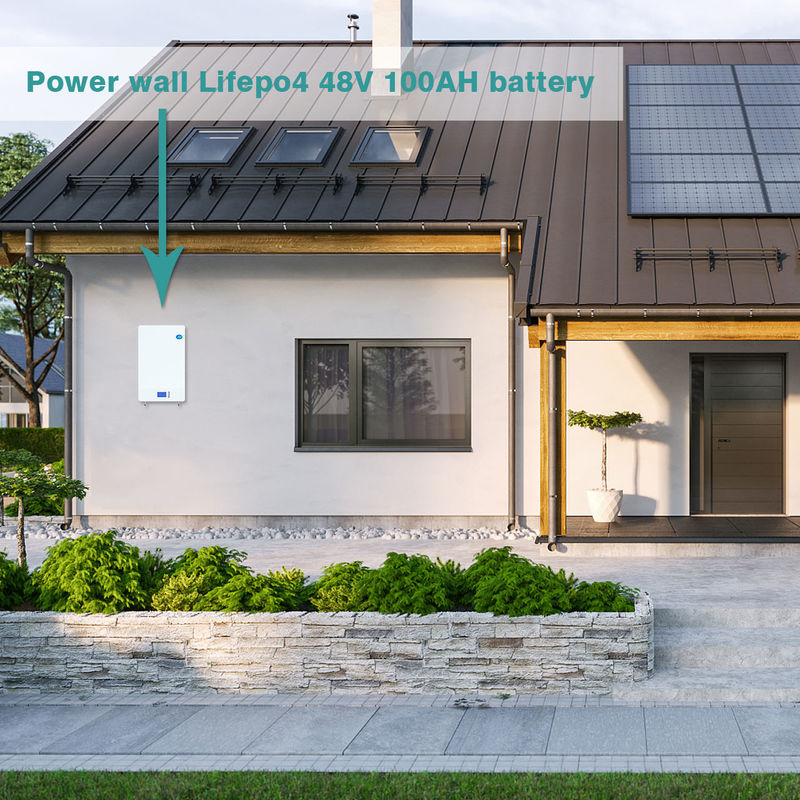

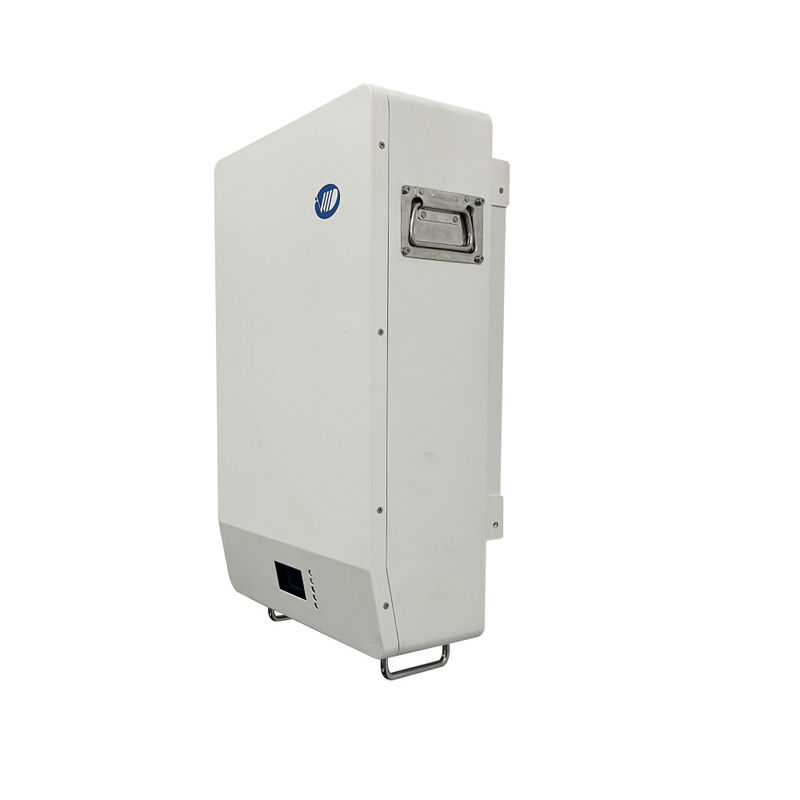

Lithium Battery 51.2V 100ah Inverter Battery Home Energy Storage Solar
51.2V 100ah Solar Inverter Home Solar System Pure Sine Wave Solar Inverter 40A Solar Charge Controller Auto Restart Overload Short Circuit Protection
This is a high-quality solar inverter, small in size, light and portable, convenient and practical. Pure sine wave inverter with built-in solar charge controller. Selectable input voltage range according to home appliance and PC. The charge current can be selected according to the application. Configurable AC/Solar input priority via LCD settings. Compatible with mains voltage or generator power.
feature:
Pure sine wave inverter with built-in solar charge controller.
Selectable input voltage range according to home appliance and PC.
The charge current can be selected according to the application.
Configurable AC/Solar input priority via LCD settings.
Compatible with mains voltage or generator power.
Automatic restart when AC power is restored.
Overload, overtemperature and short circuit protection functions.
Smart battery charger design to optimize battery performance.
Equipped with cold start function.
Widely used, it can provide reliable power protection for office and public equipment, household systems, network transmission equipment, manufacturing and control systems, and solar power generation systems.
| Specification | ||
| Model | VENUS-BAT-5 | VENUS-BAT-10 |
| Physical | ||
| Battery Type | Lithium lron Phosphate Battery(LiFePO4) | |
| Weight | 55kg | 100kg |
| Weight | 360* 160*582mm | 495* 200*800mm |
| IP Protection | IP65 | |
| Warranty | 5 years | |
| Certification | CE 1 RoHS /UN38.3 | |
| Electrical | ||

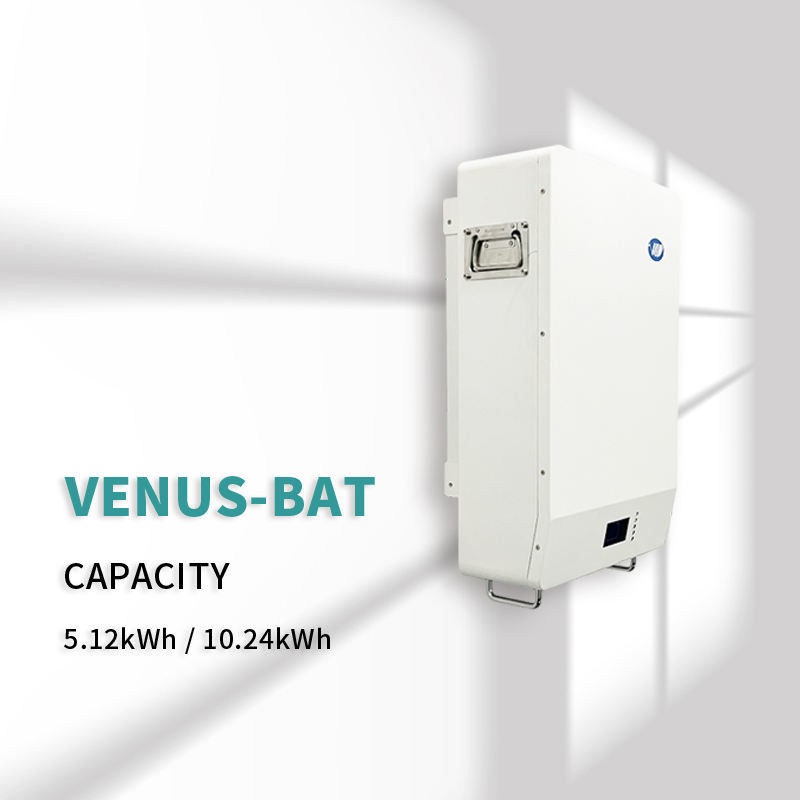

| Energy Capacity | 5.12kWh | 10.24kWh |
| Nominal Voltage | 51.2V | |
| Nominal Capacity | 100Ah | 200Ah |
| Operating Volitage Range 43.2~57.6V | ||
| Internal Resistance | s20mQ | |
| Cycle Life | 6000 times | |
| Operation | ||
| Max. Charging Current | 50A | 100A |
| Max. Discharging Current 100A | 100A | |
| Charge temperature | 0"C~45"C | |
| Operating temperature | -15*C~55"C | |
| Storage temperature | -25"C~60*C | |
| Operating altitude | 0-4,000m (Derating above 2,000m) | |
| BMS | ||
| Scalability | max. 16 units in parallel | |
| Monitoring Parameters | voltage , current, cell voltage, cell temperature, PCBA temperature, sOC | |
| Communication | CAN and RS-485 compatible(optional) | |
| Certification | ||
| Transportation | UN38.3 | |
| Safety | CE | |
| Environment | RoHS | |
| Company Profile | ||
FQA:
1.How many hours can a 100Ah lithium battery last?
Watt / Volt = Ampere per hour
So a 100ah (ampere hour) battery will last 1000 hours.
2.Is a 100Ah lithium battery enough?
100 amp hours is a fairly typical battery capacity for the camping, travel, and RV industries. If you don't have a 100 amp hour battery, you'll have something close to it or multiples. 200 amp hour and 300 amp hour battery sizes are very common.
3.How many lithium batteries do you need to make 100Ah?
If you choose the 12V, 100Ah RB100, you will need five batteries. If you choose the 12V, 300Ah RB300, you will need two
4.Is the higher the Ah lithium battery, the better?
Using a battery with a higher Ah increases the run time of the device on a single charge. This feature is important if the power goes out frequently
5.or for extended periods of time. However, the higher the Ah on the battery, the bigger it is (physically).
How long does it take to fully charge a 100Ah lithium battery?
The low resistance of a lithium battery allows the battery to accept the full output of the charger. Using a 30 amp charger, the 100Ah lithium battery can go from full to full in a little over 3 hours, while the 100Ah AGM battery takes 10+.
