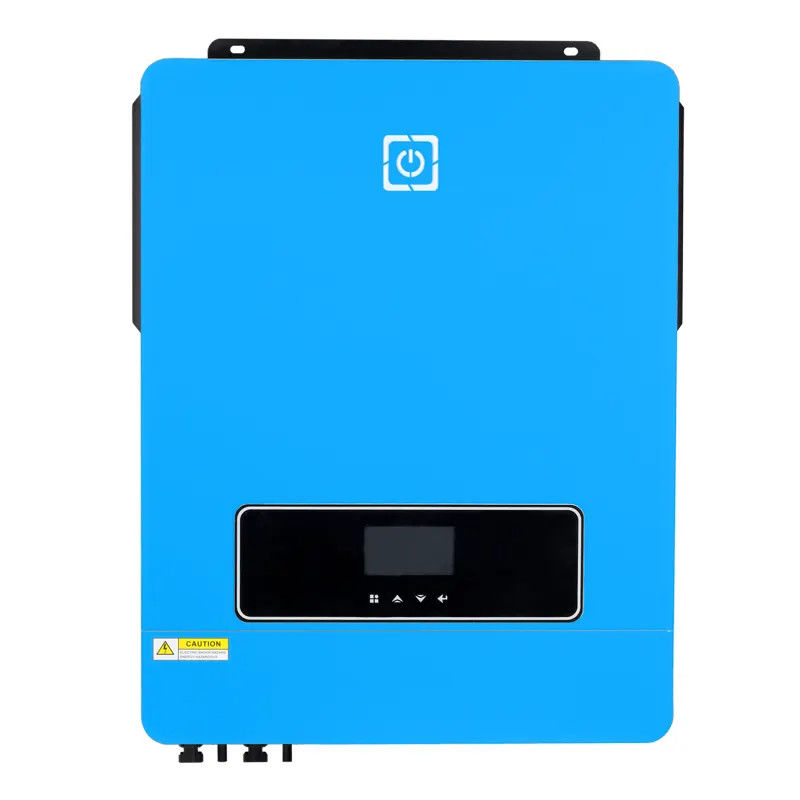

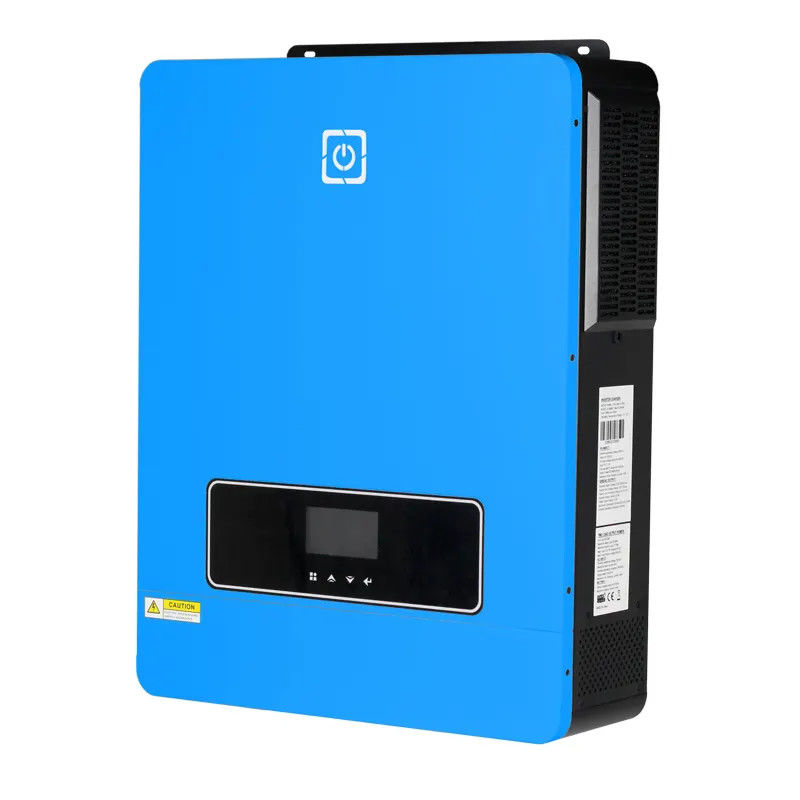

8.8kw 10kw Hybrid Solar Inverter 24v 48v Off Grid Solar Battery

8.8kw 10kw Hybrid Solar Inverter 24v 48v Off Grid Solar Battery

10kw Hybrid Solar Inverter

Hybrid Solar Inverter 24v

48v Off Grid Solar Battery

Place of Origin:

China

Brand Name:

KVOU

Certification:

CE,UL

Model Number:

24v-3.6kw

Contact Us
Request A Quote
Product Details
Weight:
11kg
Maximum Solar Charging Current:
160A
Operating Temperature:
-10~50℃
Nominal DC Vonage/Maximum Dc Voltage:
360VDC/500VDC
Output Voltage Range:
195~253VAC
Nominal Output Voltage:
220/230/240VAC
Display:
LCD +LED
Inverter Type:
Off-grid Power Inverter
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Wooden case and Carton case
Delivery Time
7-15working days
Payment Terms
T/T, D/P, D/A
Supply Ability
5000 unit per month
Product Description

8.8kw 10kw hybrid solar inverter 24v 48v off grid solar battery



Home Solar Energy Storage System
Provide a complete solar energy storage system at a competitive price for customers to choose
Includes monocrystalline solar panels, hybrid MPPT inverter and lithium iron phosphate battery
Customers can make one-stop purchases from here



Energy grid connection

and off-grid systems

Features

● 10-year service life, safe investment

● Capacity from 4 to 12.8kWh

● Consistent appearance throughout the system

● Intelligent BMS, WiFi monitoring

● RS485 communication port, Wi-fi

● Battery DC/AC efficiency: 97.8%

● User-adjustable charging settings for different batteries

● Comprehensive protection functions



Model
SY-8200W
SY-8200W
SY-10200W
Rated Output Power
7200W/7200VA
8200W/8200VA
10200W/10200VA
Maximum Solar Charging Current
160A
160A
180A
GRID-TIE OPERATION

PV Input(DC)

Nominal DC vonage/Maximum Dc Voltage
360VDC/500VDC
Start-up Voltage/Initial Feeding Voltage
90VDC/120VDC
MPPT Voltage Range
90VDC/450VDC
Number of PPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)

Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195~253VAC
Nominal Output Current
31.3A
35.6A
44.3A
Power Factor
>0.99
Feed-in Grid Frequency Range
49~51±1HZ
EFFICIENCY



Maximum Conversion Efficiency(DC/AC)
98%
TWO LOAD OUTPUT POWER



Full Load
7200W
8200W
10200W
Maximum Main Load
7200W
8200W
10200W
Maximum Second Load(battery mode)
2400W
2733W
3400W
Main Load Cut Off Voltage
44VDC
44VDC
44VDC
Main Load Return Voltage
48VDC
48VDC
48VDC
OFF-GRID OPERATION

AC INPUT

AC Start-up Voltage/Auto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
40A
40A
50A
Nominal operating frequency
50/60HZ
Surge power
14400W
16400W
20400W
PV INPUT(DC)

Maximum DC Voltage
500VDC
MPPT Voltage Range
90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
BATTERY MODE OUTPUT(AC)

Nominal Output Voltage
48VDC
48VDC
48VDC
Output Waveform
Pure sine wave
Eficiency(DC to AC)
94%
BATTERY& CHARGER

Nominal DC Voltage
48VDC
48VDC
48VDC
Maximum Solar Charging Current
160A
160A
180A
Maximum AC Charging Current
140A
140A
160A
GENERAL

PHYSICAL

Dimension.D*W*H(mm)
420*310*110
Cartoon Dimension, D*W*H(mm)
588*463*205
Net Weight(kgs)
14.2
14.2
14.5
Gross Weight(kgs)
15.7
15.7
16
INTERFACE

Communication Port
RS232/WIFV/Remove LDC/GPRS
Operating Temperature
-10~50℃

8.8kw 10kw Hybrid Solar Inverter 24v 48v Off Grid Solar Battery 0

FQA:



1.What is an off-grid inverter?
Off-grid inverters are designed to work alone and cannot be synchronized with the grid. They are connected to properties rather than the grid and cannot be used with it. Off-grid inverters must immediately supply alternating current from direct current to electrical equipment.



2.What is the difference between grid-connected inverters and off-grid inverters?
Grid-connected system means that the solar power generation system is connected to the public power grid, while off-grid system means that the system works independently and the user is not connected to the public power system.



3.What are the advantages of off-grid inverters?
Off-grid converters allow you to store the sun's abundant energy in batteries. At night, it uses the stored energy to power the house. Off-grid solar inverters allow you to be self-sufficient in electricity.



4.Which is better, a hybrid inverter or an off-grid inverter?
Off-grid inverters cannot be synchronized with the utility grid. These are designed to work alone. Off-grid inverters do not provide power from solar or batteries to the utility grid. Hybrid inverters, on the other hand, can feed power back to the utility grid.
